AXIS P3747-PLVE Panoramic Camera


4×5 MP multidirectional with AI analytics

  • 4*5 MP at 20 fps per channel
  • Remote pan, tilt, roll, zoom (PTRZ)
  • Support for powerful analytics
  • 360° IR illumination with individually controlled LEDs
  • Built-in cybersecurity with Axis Edge Vault

AXIS P3747-PLVE lets you monitor four different areas, around the clock, and even in challenging lighting. Stylish and discreet, this camera also offers PTRZ functionality for ease of installation and configuration.

$2,409.00 USD

Request a quote

Ideal for expansive outdoor areas, AXIS P3747-PLVE offers four channels with 5 MP per channel at 20 fps to capture clear images over great distances. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear images in low light or darkness as well as undistorted colors during the day. Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Additionally, thanks to extended tilt functionality, all four sensors are fully tiltable ensuring you have the flexibility to see what you want to see. Furthermore, you can run AXIS Object Analytics on multiple channels to detect, classify, track, and count people and vehicles.

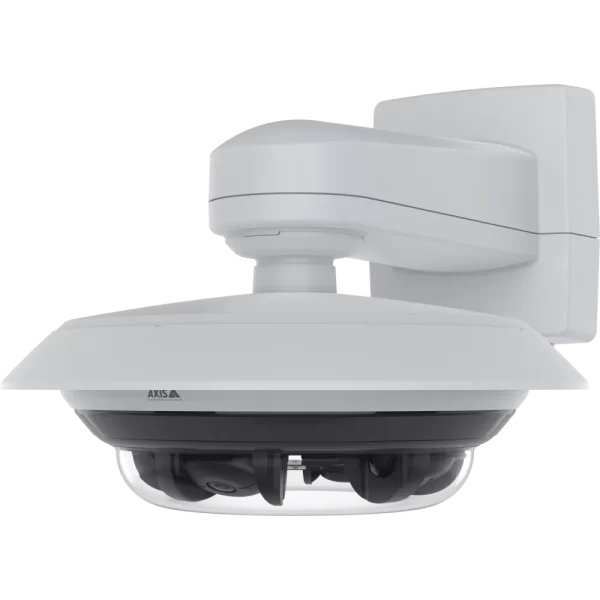

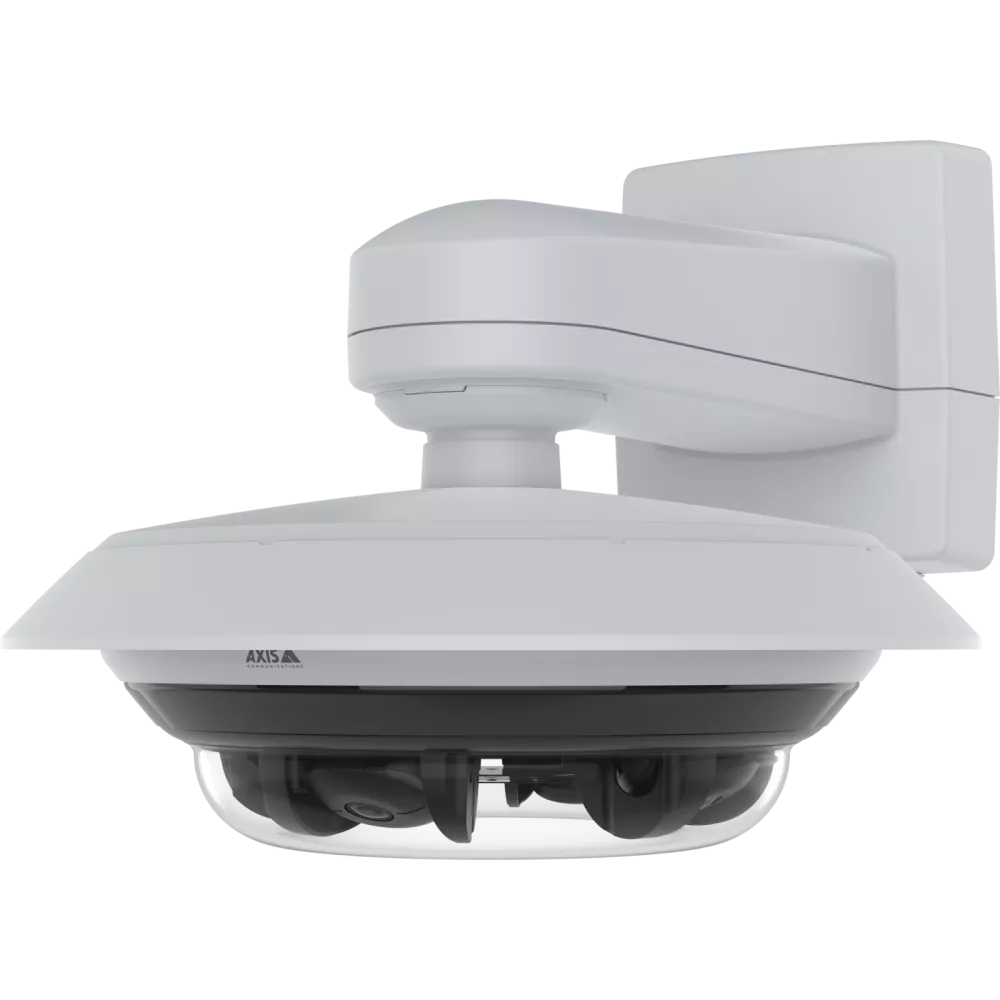

This stylish, discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. And with four camera heads in one camera, it offers fast, accurate, and cost-effective installation. Additionally, PTRZ (Pan, Tilt, Roll, Zoom) functionality means that there’s no need to physically adjust the camera. You can remotely move and set up your camera allowing for quick and easy installation. This ensures less disruption and downtime and reduces the need to dispatch a technician. Presets make it easy to configure multiple devices. In addition, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.

Product number: 02897-001



Technical specifications

Key specifications: video resolution up to 2592×1944; IP66 rated; IK10 vandal-resistant; operating range -40 to 50 °C; Forensic WDR. Manufacturer part number 02897-001.

Camera

Specification Value
Image sensor CMOS
Image sensor size 1/2.78"
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0.09 lux

Video

Specification Value
Max video resolution 2592×1944
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization

Lens

Specification Value
Focal length 3.18 – 7.42 mm
Horizontal field of view 360 °
Vertical field of view 71.5-30.0 °

Compression

Specification Value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes

Audio

Specification Value
Audio Support Yes

Security

Specification Value
Signed OS Yes
Secure boot Yes

General

Specification Value
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Sustainability BFR/CFR free, PVC free

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.

Weight 8.42 lbs
Dimensions 13.78 × 13.78 × 6.69 in
Product Number

02897-001

Warranty

5 Year Warranty

Manufacturer

Axis Communications
